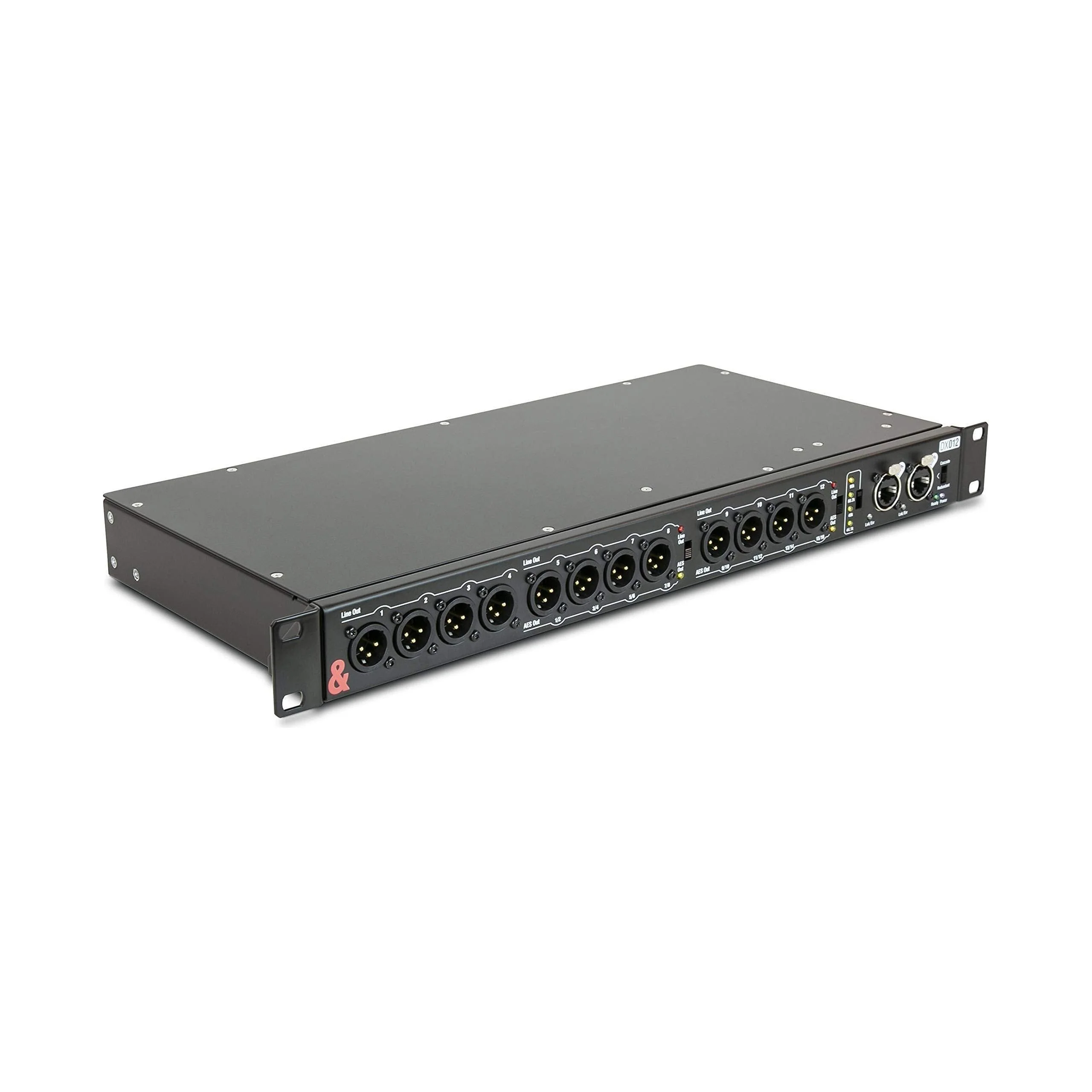

Allen & Heath DX012 12 XLR Output Audio Expander with AES Functionality
Brand: Allen & Heath
Features:
- 12 XLR output audio expander compatible with SQ and dLive (firmware 1.9 onwards) systems
- AES outputs globally switchable between 44.1kHz, 48kHz, 88.2kHz, 96kHz; Cascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/O
- Redundant DX connection to compatible hardware; can add multiple DX012 to a system: add up to 16 DX012 units to an SQ system, up to 46 units to a dLive S Class system, up to 22 units to a dLive C Class System
- Rack-mounted (1u) or shelf/floor operation; Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m; locking EtherCon ports
PartNumber: AH-DX012
Details: The DX012 is a 19” rack-mountable 96kHz output expander for Allen & Heath digital mixing systems. Each GX4816 provides 12 XLR outputs, configurable as 12 analog line outputs, 8 analog line outputs plus 4 stereo AES outputs, or 4 analog line outputs plus 8 stereo AES outputs. The DX012 connects via a single Cat5e cable to the dLive Surface, dLive MixRack, SQ mixer or upstream DX expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.
EAN: 6938122249448
Model: AH-DX012
Binding: Electronics
Item Condition: New
Original: $1,599.00
-70%$1,599.00
$479.70More Images
